Deatschwerks DW650il Borstlös in-line bränslepump

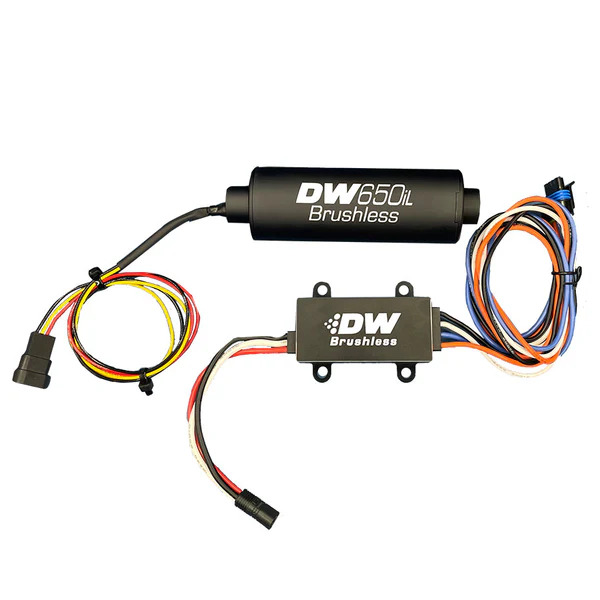

Deatschwerks DW650il Brushless in-line fuel pump with dual speed controller.

The DW650iL brings brushless technology to DW's line of in-line fuel pumps. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

Along with higher flow rates, DW650iL comes with AN ORB female threads on the inlet and outlet to easily incorporate fuel lines. Its also delivered with the DW C105 dual speed controller unit.

Specifications

• Petrol horsepower ≈ 1400 HP @ 60 PSI / 4.14 BAR (EFI engines)

• E85 horsepower ≈ 940 HP @ 60 PSI / 4.14 BAR (EFI engines)

• Flow rate: 660 LPH (40 PSI / 13.5v / 7.6 Amps)

• Safe for ethanol: YES

• Fuel pump setup: In-line brushless fuel pump

• Controller unit: C105 Dual speed controller unit

• Impeller design: Positive displacement screw

• Note: No internal check valve

• Inlet thread: AN-8 ORB

• Outlet thread: AN-8 ORB
