PMC Svänghjul GM Chevrolet V8 LS LS1 LS3 LS7 240mm

Chevrolet LS1 LS3 LS7 - GS653DZ

PMC Motorsport Lightweight custom aluminum flywheel for GM Chevrolet V8 LS LS1 LS3 LS7 engine conversion with manual transmission / gearbox from BMW M57N M57N2 ZF GS6-53DZ HGA E46 330D HGD JGA E60 525D 530D 6-speed Diesel

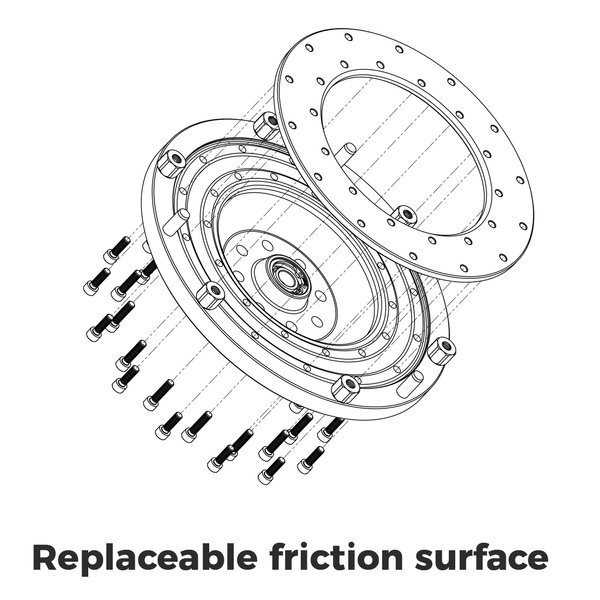

cast iron, replaceable friction surface,

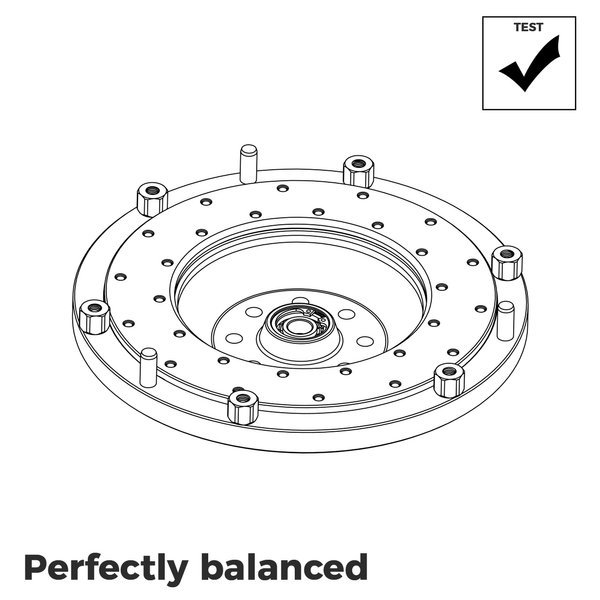

balanced before shipment
for the flywheel, it is necessary to use a gear rim / flexplate GM Chevrolet LS (6-bolts) automatic, so we leave the original starter in the unchanged position
flywheel weight approx. 6,5 kg
Set contains:

aluminium flywheel
mounting screws
Matching Chevrolet engines:

GM Chevrolet LS1 (6-bolts)
GM Chevrolet LS3 (6-bolts)
GM Chevrolet LS7 (6-bolts)
Matching BMW gearboxes:

BMW M57N M57N2 23.00 7522205 GS6-53DZ HGD (THGD) 6-speed 1067 010 003 ZF 1067 401 060 1067401060 / 1067 401 016 1067401016 BMW OEM 23 00 7 522 205 / 23 00 7 565 218
BMW E60 E60N E61N E61 525D 530D
BMW M57N M57N2 23.00 7565218 GS6-53DZ JGA (TJGA) 6-speed 1067 010 013 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 426
BMW E60 E60N E61N E61 525D 530D
BMW M57N GS6-53DZ HGA (THGA) 6-speed
BMW E46 330D
Recommended Clutches:

240mm with the BMW E60 530D

SACHS® 3000 951 952
SACHS Performance® 88 308 200 1243 + transmission dedicated disc
The PMC Motorsport ID: F0M50-LS (HGA gearbox) / F0M57-LS adapter must be used to connect the engine to the transmission

Engine:
Chevrolet V8 LS LS1 LS3 LS7 6-bolt Crankshaft
Gearbox:
BMW M57N/M57N2 GS6-53DZ HGD E60 530D 6-SPEED DIESEL
, BMW M57N/M57N2 GS6-53DZ JGA E60 530D 6-SPEED DIESEL
, BMW M57N/M57N2 GS6-53DZ HGA E46 330D 6-SPEED DIESEL
Flywheel Type:
Single Disc
Material:
Aluminium
Diameter:
240mm / 9.45"
Recommended clutch pressure plate:
BMW E60 530D Sachs 3000 951 952
, Sachs Performance 88 308 200 1243 / 883082.001243
