Toyota JZ 1JZ 2JZ - GS5-39DZ Getrag 420

Toyota JZ 1JZ 2JZ - GS5-39DZ Getrag 420

Adapter kit enables users connection of Toyota JZ Motor series with very durable and easy to buy BMW Växellåda. It is an ideal solution for motorsport.

Advantages of PMC sets:
The kit warranties ideal alignment of Motor and Växellåda (0,01mm)

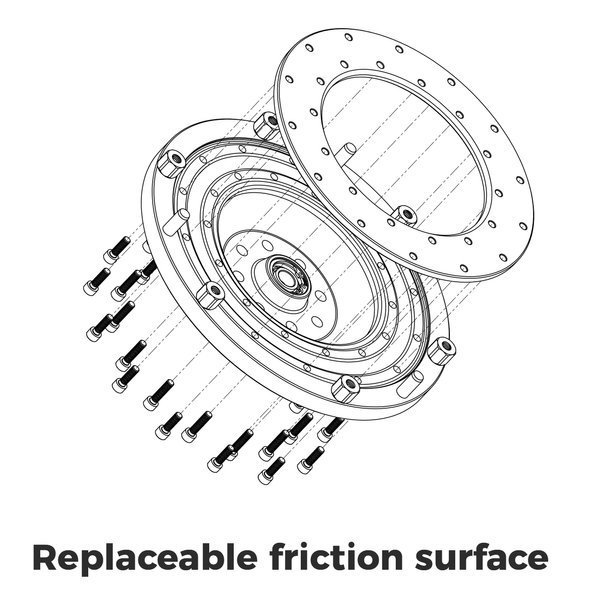

Ultra-Lightweight aluminum Svänghjul includes replaceable iron cast friction surface,
each flywheel is carefully checked and precisely balanced before shipping.

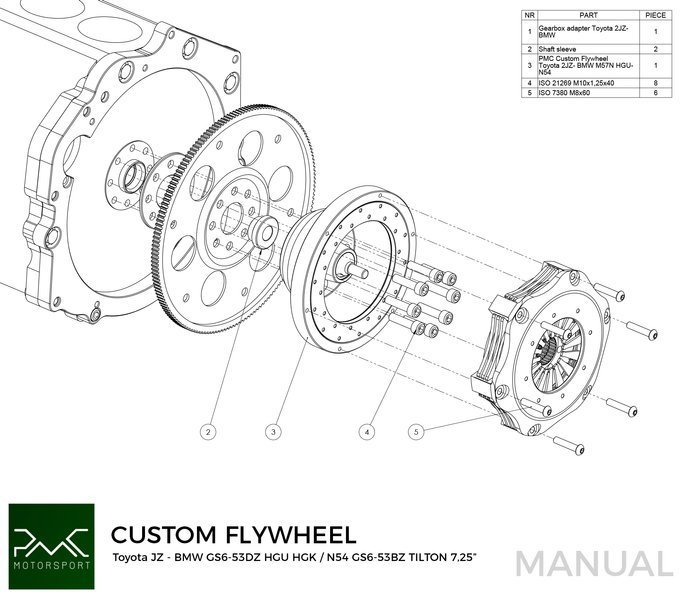

Original automatic transmission ring gear (flexplate) for Toyota JZ (Toyota OEM OEM 32101-30090 / 32101-22050)  is required to install PMC Svänghjul. The original Toyota JZ started is used with the kit in the same position.

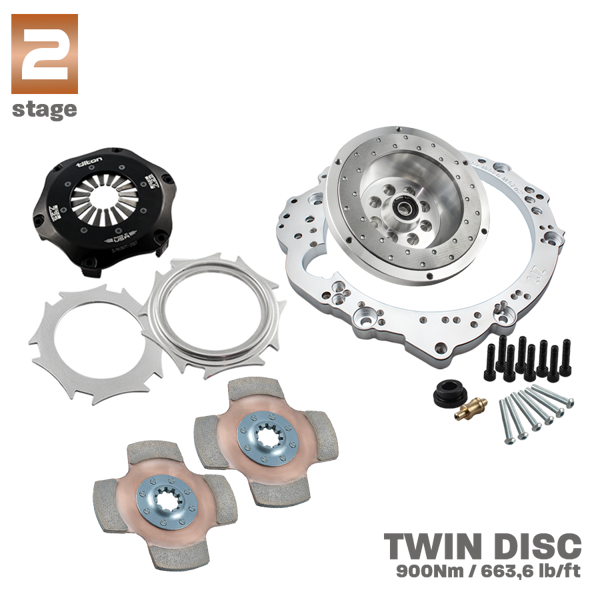

Set inkluderar:

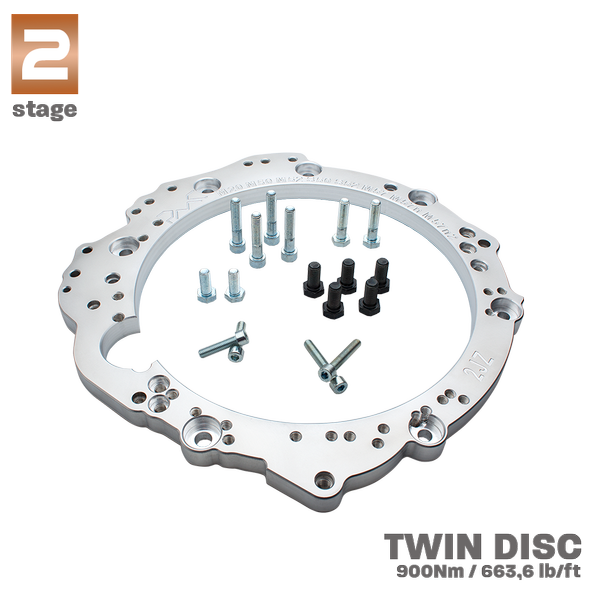

Aluminum Växellåda adapter plate

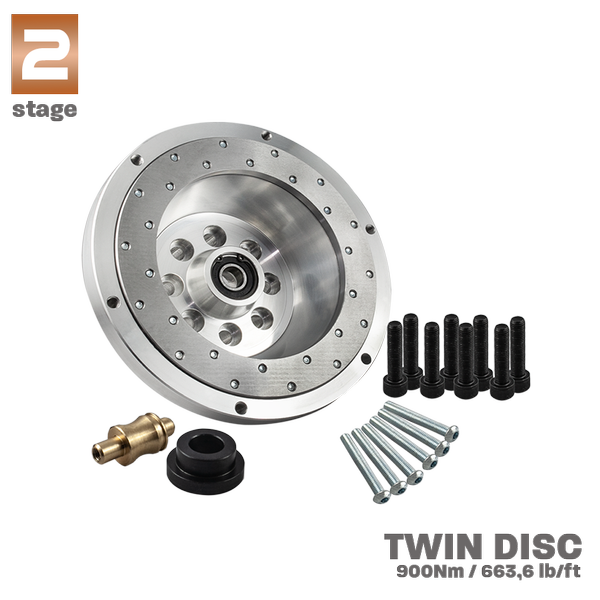

Svänghjul
Necessary assembly screws

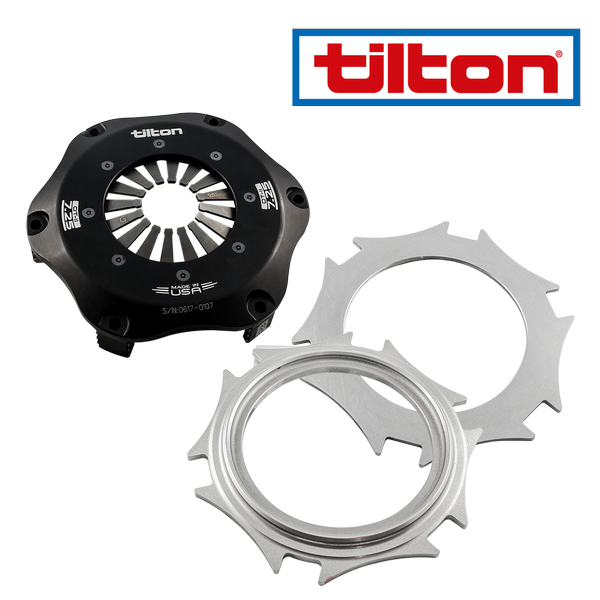

Tilton Motorering® OT-II Cerametallic Pressure Plate 7,25" 66-302HGG (Dual disc)

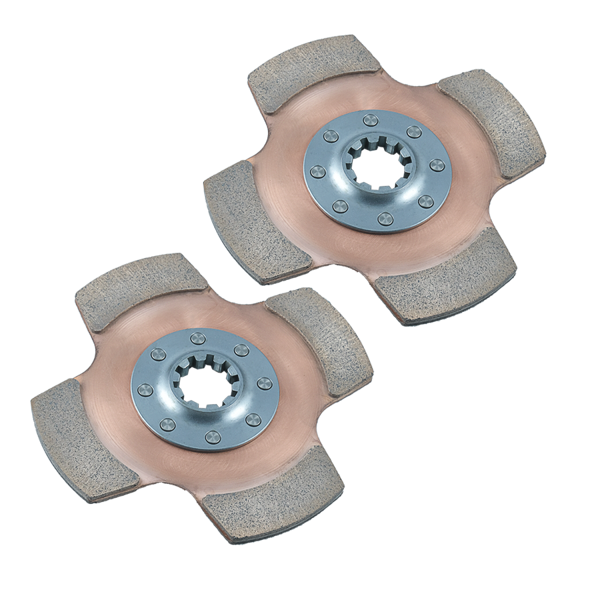

PMC Motorsport sintered discs pack 7,25"184mm 28x35-10N (2disc)

Motor list:
Toyota 1JZ / 1JZ-FSE / 1JZ-GE / 1JZ-GTE (non VVT-i / VVT-i version)
Toyota 2JZ / 2JZ-FSE / 2JZ-GE / 2JZ-GTE (non VVT-i / VVT-i version)

Växellåda list:
BMW S54 E46 M3 6-Växlad GETRAG 420 TBAI 226.0.0440.97
BMW M57 Diesel 5-Växlad GS5-39DZ
BMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011

Övrig information:
Loosen the rear water hose and lift it over the adapter.
Use only one "thicker" distance (spacer) between the Motor block and the rim (gear)
Replace the original Toyota JZ starter
The flywheel should be tightened with the same torque as the Toyota OEM
The required adjustment of the slave pump (change of the pump to a smaller one - piston diameter or shortening of the pump stroke)

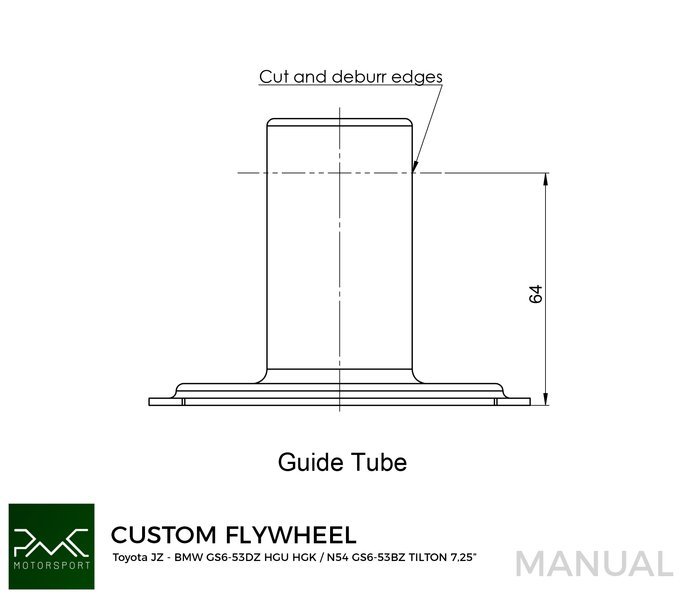

Requires BMW OEM 23 11 7 501 714 guide tube shortening

Motor:
Toyota JZ 1JZ 2JZ
Växellåda:
BMW E39 530D M57 GS5-39DZ 5-Växlad DIESEL
BMW E46 M3 6-Växlad Getrag 420 TBAI
BMW E46 330D M57 GS5-39DZ 5-Växlad DIESEL
BMW E39 525D M57 GS5-39DZ 5-Växlad DIESEL
Typ av adapterkit:
Motorsport
Spline:
28x35-10N
Kopplingskit:
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302HGG Dial disc
Typ av svänghjul:
Ultralight Race 184mm / 7.25"
Spline Count:
10
Artikelnummer som ingår:
F0BMW-JZ
K0M50-TS-JZ
TILTON 66-302
PMC3P-M3
Kopplingskit inkluderat:
Ja
