Xtreme Performance - 230mm Fjädrad Keramisk Tvåskivig Kopplingskit Med Svänghjul 1000Nm

RB25DET, RB25DEH, RB26DETT, RB25DE

Taggar
Twin plate
Artikelnr: ACS-KNI23582-2B
  • Beskrivning

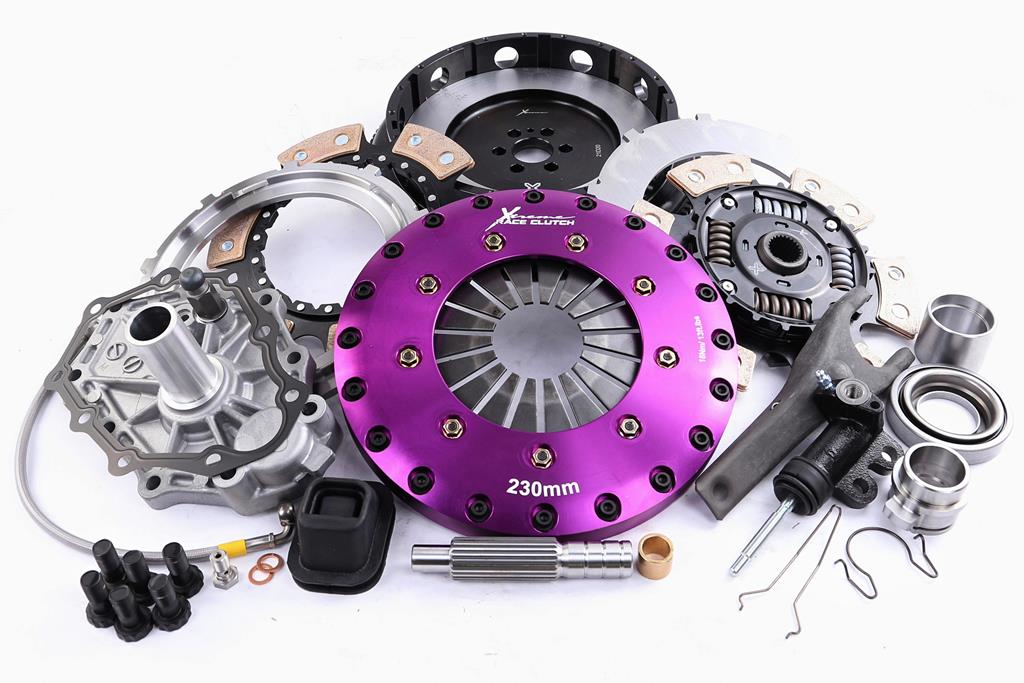

    Xtreme Clutch 230mm twin plate kit

    The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



    The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



    Product Features:

    • Torque capacity 1000Nm
    • Kit contains everything you need for a successful installation + accessories
    • Push type billet alloy cover Low pedal effort
    • 4140 Chromoly pressure & intermediate plates
    • Chromoly adapter ring
    • Low inertia
    • Serviceable components
    • SFI certified design
      Flat Diaphragm Rolled Diaphragm
    Clamping Force 1300kg 1300kg
    Torque Rating 1000Nm 1000Nm
    Bearing Contact Diameter 65mm FLAT BEARING
    Bearing Load (@ 48mm) 180kg 150kg
    Release Travel Required 7mm 7mm
    Assembly Mass (without flywheel) 8.30kg 8.30kg
    Disc Set Static Mass 2.25kg 2.25kg
    Friction Thickness New 8mm (0.315") 8mm (0.315")
    Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

    \n

    Fits the following models:

    - NISSAN/SKYLINE (R34)/2.5/1998.05-2002.08/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)
    - NISSAN/SKYLINE (R34)/2.5/1998.06-2006.01/RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)
    - NISSAN/SKYLINE (R34)/2.5 4x4 (ENR34)/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
    - NISSAN/SKYLINE coupe (R32)/2.6 Twin Turbo 4x4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
    - NISSAN/SKYLINE coupe (R33)/2.6 Twin Turbo 4x4/1994.07-1999.09/RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)
    - NISSAN/SKYLINE coupe (R34)/2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
    - NISSAN/SKYLINE coupe (R34)/2.5 Turbo/1998.05-2006.01/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)
    - NISSAN/STAGEA (WC34)/2.5/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
    - NISSAN/STAGEA (WC34)/2.5 AWD/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
    - NISSAN/STAGEA (WC34)/2.5 Turbo AWD/1996.09-2001.10/RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)
    - NISSAN/STAGEA (WC34)/2.6 Twin Turbo/1996.09-2001.10/RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10)



  • Specifikation
    Specifikation
    Newtonmeter 1000 Nm
    Bilmärke Nissan
    Motorkod RB25DE
    Motorkod RB25DEH
    Motorkod RB25DET
    Motorkod RB26DETT
