CANchecked Brake Temperature Sensor - BMC01

Enhance your racing or high-performance setup with accurate, real-time temperature data. This sensor provides comprehensive insights across multiple channels, designed for the demands of motorsport environments.

Key Features

• Temperature Range: -40 to +800°C
• Multi-Channel Customization: Up to 16 configurable channels for tailored data
• Field of View Options: 110° standard, optional 55° for focused measurements on request

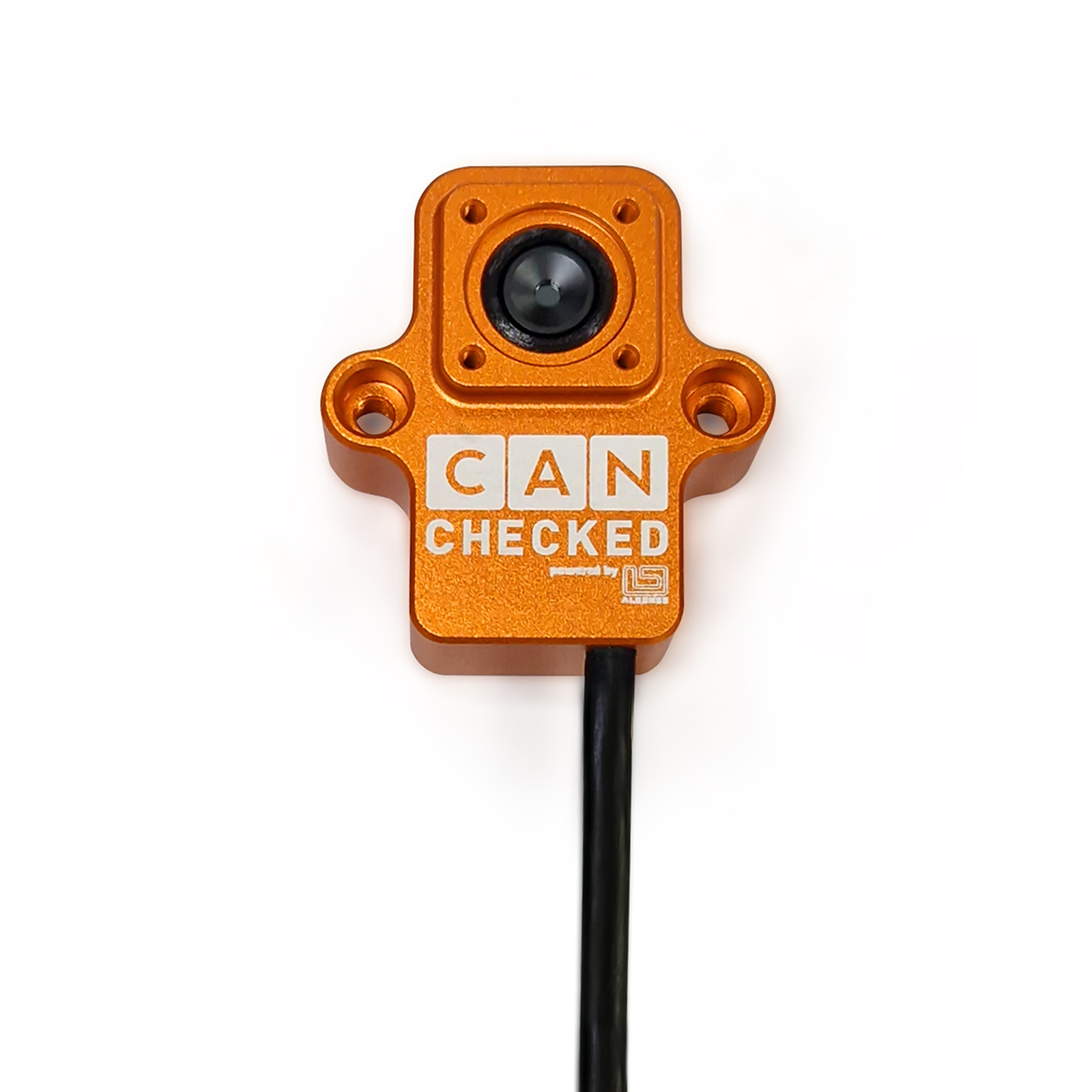

• Compact and Durable Design:
  • Size: 45.5 x 25.5 x 12 mm
  • Weight: 25g
  • Housing: Aluminum, rated IP66 for rugged conditions
  • Optional Protecting Lens: Additional lens option for enhanced durability and protection
• Flexible Power Input: Operates on 5–20V with an adjustable refresh rate up to 64 Hz
• Seamless CAN Integration:
  • Supports CAN 2.0A and 2.0B standards
  • Adjustable bit rates and CAN termination options
  • Standard CAN-ID configurable for tire (0x310) or brake (0x210) data
• Data Precision:
  • -200°C offset
  • 0.1°C per bit resolution for high-accuracy readings
• Easy Installation:

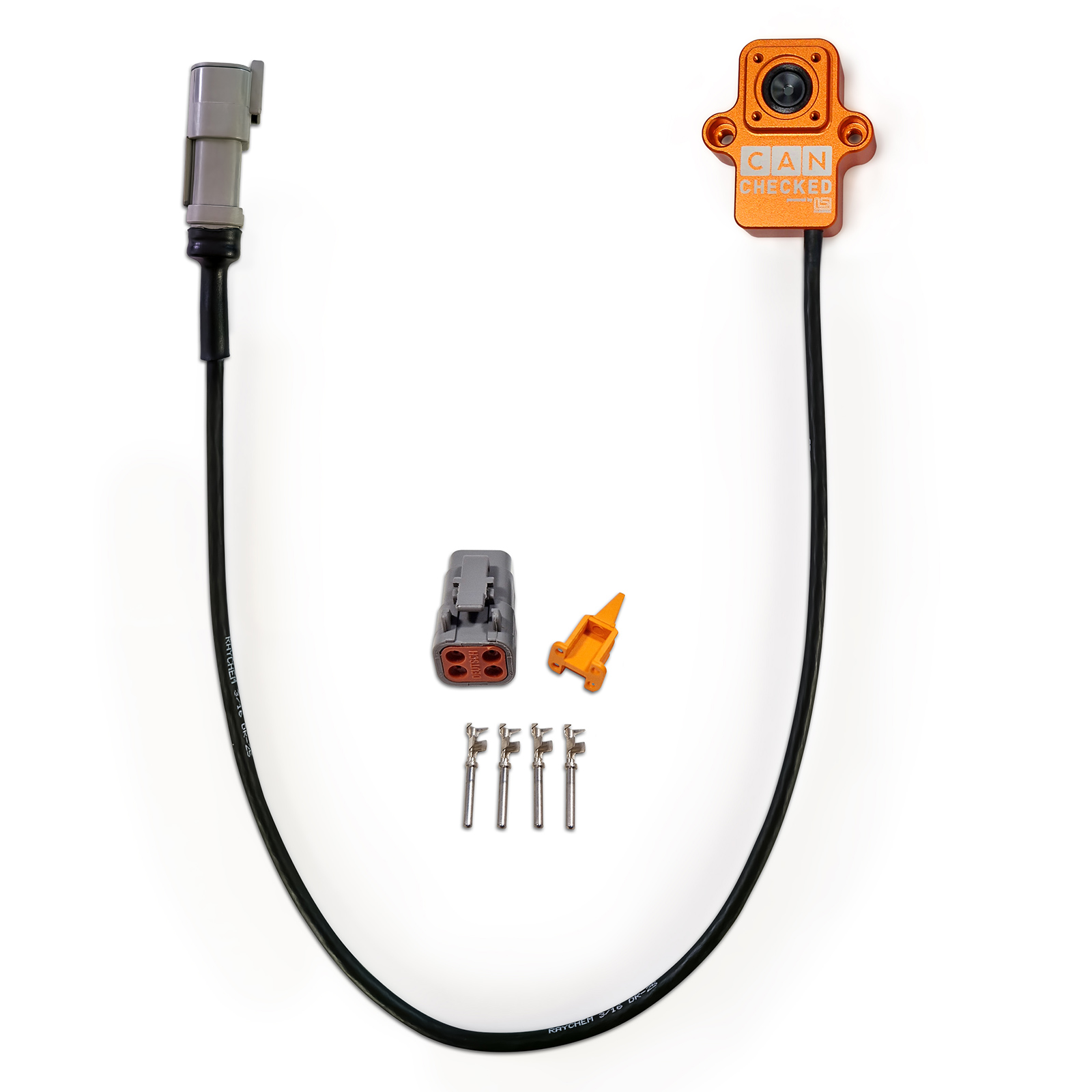

  • Includes 0.5m AWG22 cable and DTM04-4P connector
• Built for Performance: IP66 rating ensures resilience against harsh environments

Conclusion

Ideal for racing and performance testing, this sensor empowers you with actionable data for optimizing handling, braking, and tire management.
