Innovate DLG-1: Dubbel bredbandslambda

Innovate DLG-1: Dubbel bredbandslambda

En mätare, två lambdasonder! Den perfekta lösningen för alla V8 motorer

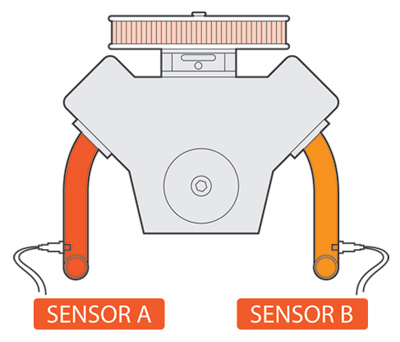

• Monitor left and right exhaust banks on one single gauge!
• Perfect for all V configured engines
• Plug & Play setup for both O2 sensors
• No PC required for additional configuration
• 52mm (2 1/16”) diameter gauge body
• Interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
• User configurable OLED display (AFR or Lambda)
• Multiple ways to display data on gauge
• Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology!
• Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
• Ability to calibrate O2 sensors for maximum accuracy
• Configurable linear 0-5v analog output for wideband O² for use with piggy back or stand alone ECU’s as well as external data loggers
• Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)
• Datalog both O2 channels using powerful LogWorks software on your PC

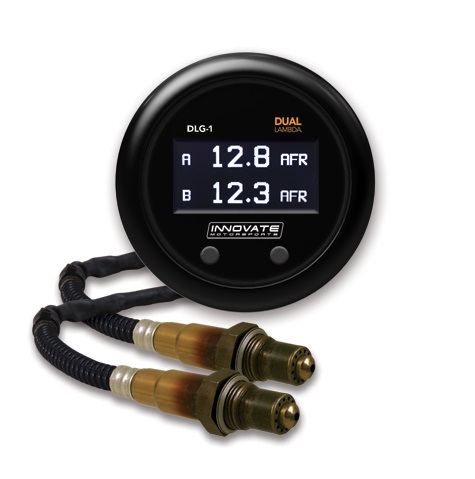

DLG-1: Dual Lambda (AFR) Gauge Kit - includes

• DLG-1 gauge
• 2x Wideband Bosch LSU4.9 O2 sensors
• 8 ft sensor cables, LC-2 Wideband Controller
• 2x O2 sensor weld-on bungs
• Black/Silver bezel
• Black/White faceplate
• Serial program cable
• Installation manual

Installation and Setup

Installation of the DLG-1 is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning.

P/N: 3891
