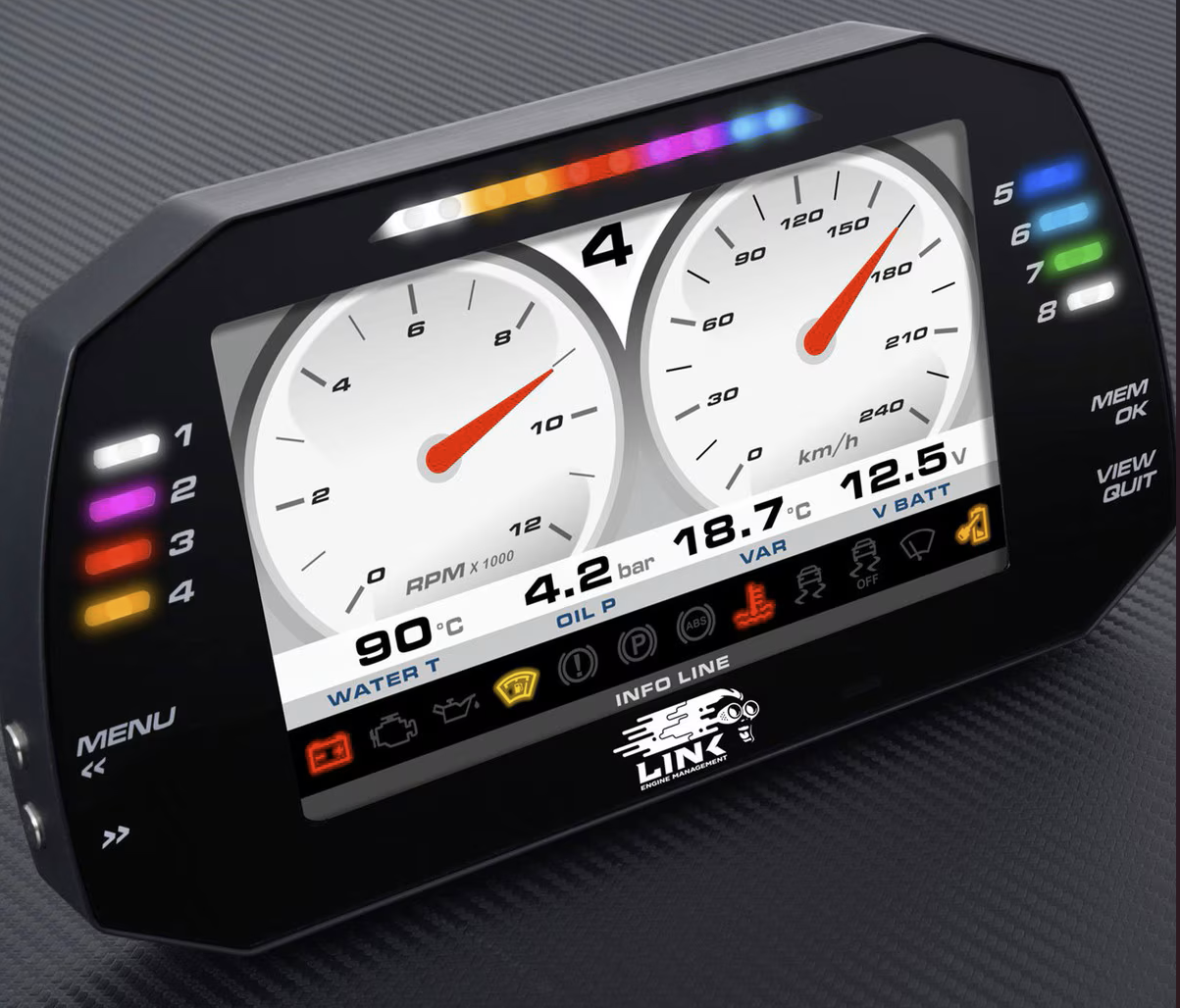

LINK MXG Strada Light 7-inch Dash - Race Edition

LINK MXG Strada Light 7-inch Dash - Race Edition

he Link MXG Strada Race Light is a compact, track-ready digital dash display, built for users who want a clean, ECU-based setup without extra sensor wiring. Featuring a crisp 7" TFT screen, programmable shift lights, and race icons, it delivers key driving data with clarity and style.

Ideal for track use, the Strada Race Light offers essential real-time data in a sleek, minimal format—perfect for performance builds where simplicity and visibility matter most.

The Link MXG race Light edition has been created as a more accessible product for people who will use less analogue inputs, and just need a CAN connection for their ECU. Whilst being very similar to the MXG Strada, the MXG Strada Light gives 4 fully configurable analogue inputs (Max of 500 Hz each) instead of the 8 that is found on the standard MXS Strada

It also doesn’t have a digital output or a RPM connection which is found within the standard MXS Strada.

This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for road purposes.

Features:

• 7" compact TFT display

• 10 shift light RGB LEDs

• CAN input

• 8 race focused alarm RGB LEDs

• 4 analogue inputs (Max of 500 Hz each)

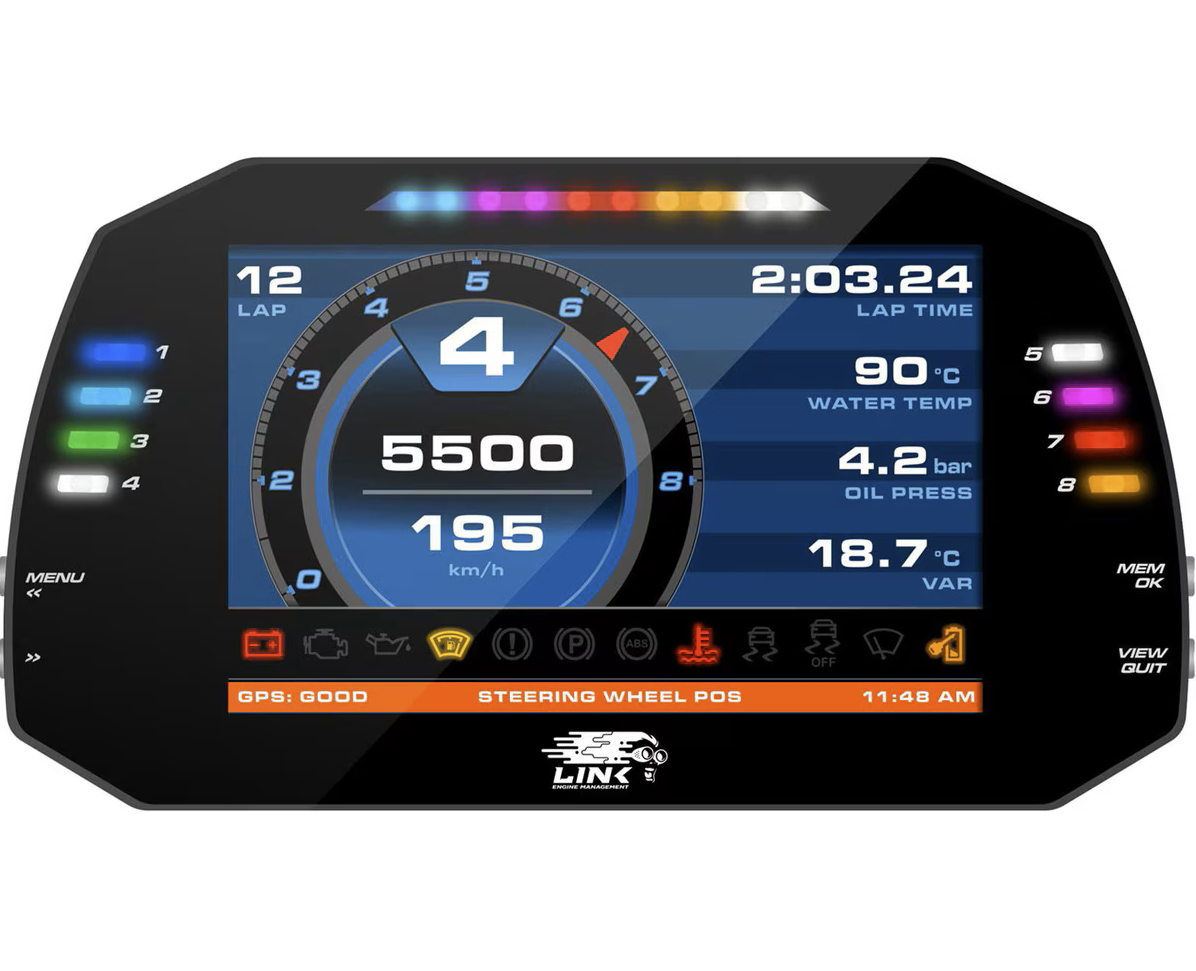

The Link MXG Strada Light Race Edition dash features customisable shift lights, eight flexible alarm LED’s and a high contrast 7-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear.

The same flexibility applies to the eight configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXG Light connects directly to your Link ECU via the pin kit and wiring provided in the box.
To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

• Included in the box:
• Link MXG Strada race Light
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Specifications:

• AiM MXS 1.3 Strada Light 7" TFT Dash Display with Road Icons
• Display : 7" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient Light Sensor: Yes
• Alarm LEDs: 8 RGB freely configurable
• Shift Lights: 10 integrated freely configurable RGB LEDs
• CAN Connections: 2
• ECU Connections: CAN or K-Line to 1,000+ industry leading ECUs
• Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
• Analogue Inputs: 4 fully configurable, max 500 Hz each
• EXT Video Inputs: 1 PAL-NTSC
• Second CAN: Yes
• Body: Anodized Aluminium
• Pushbuttons: Metallic
• Connectors: 1 AMP connector + 1 Binder connector
• Waterproof: IP65
