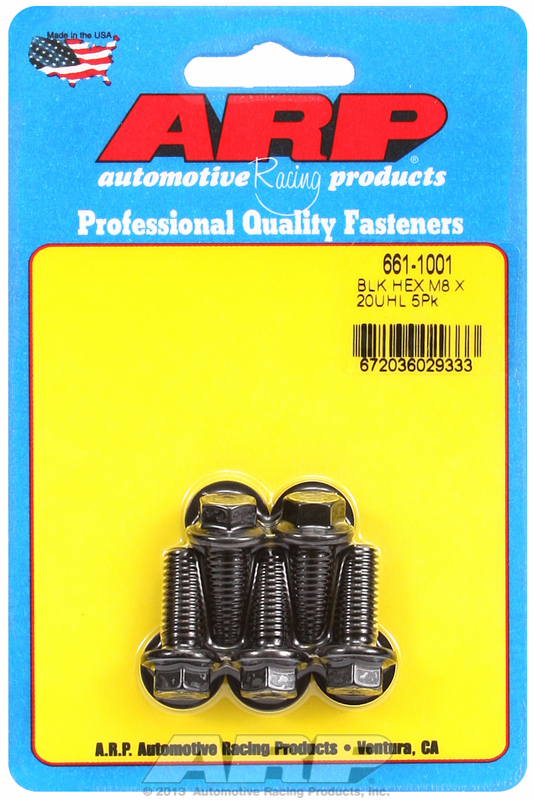

ARP bult M8x1.25 UHL 20mm (5st)

ARP bult M8x1.25 20mm UHL (5st)

10mm hex / Sexkantshylsa

1 UHL 20mm
2 Thread Length 20mm
3 Grip Length n/a mm
4 Thread Diameter-Spacing M8 x 1.25mm
5 Grip Diameter 8mm
6 Wrenching 10mm
7 Head Height 7.4mm
8 Collar Diameter 15.0mm

Torque Value*: 24 ft-lbs (32.5 Nm)
Torque notes: The torque values represented here are intended to be for general information only, not for specific installations. On specific installations, where the supplied instructions deviate from the torque values listed here, always follow the specific instructions packaged with the kit. Always lubricate the fastener prior to applying torque to ensure accurate readings. The values above are for use with ARP Ultra-Torque
