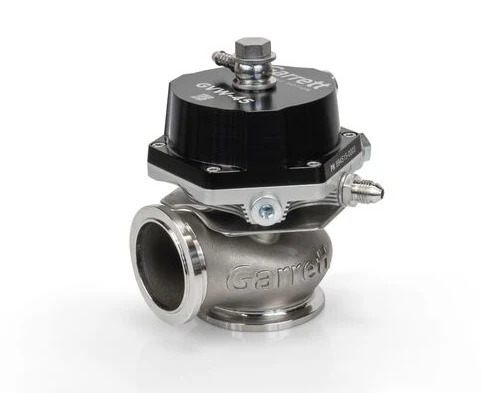

Garrett Wastegate Kit 45mm Black
Garrett
45 MM
CFD tested for maximum flow and thermal efficiency
Optimized actuation stability and temperature resistance for superiordurability
Replaceable valve and bushing components to increase service life
Robust design for easy diaphragm replacement
Liquid-cooled actuator ports for use on severe applications(up to 52% reduction in body temp)
Anodized aluminum actuator cover
Springs | Fittings | Flanges | V-bands included
Standard Base Pressure: 1 Bar | 14.
5 PSI
Maximum Base Pressure:
GVW40: 25 PSI | 1.
7 Bar
GVW45 | GVW50: 23 PSI | 1.
Kundrecensioner
Hjälp andra att välja rätt. Var först med att skriva en recension!
Skriv en recension- 45 MM
- CFD tested for maximum flow and thermal efficiency
- Optimized actuation stability and temperature resistance for superior
durability - Replaceable valve and bushing components to increase service life
- Robust design for easy diaphragm replacement
- Liquid-cooled actuator ports for use on severe applications
(up to 52% reduction in body temp) - Anodized aluminum actuator cover
- Springs | Fittings | Flanges | V-bands included
- Standard Base Pressure: 1 Bar | 14.5 PSI
- Maximum Base Pressure:
- GVW40: 25 PSI | 1.7 Bar
- GVW45 | GVW50: 23 PSI | 1.6 Bar
- Minimum Base Pressure: 3 PSI | 0.2 Bar
Kit Contents
GVW Wastegates include all the following parts:
- Springs
- V-Band: Inlet | Outlet
- Outlet Flange
- Inlet Flange
- Valve Seat
- Washers: M8 | M10
- Water Fittings
- Banjo Bolt and Banjo Fittings
- Air Plugs
----------------
